Photo Index - Unknown Manufacturer - Primitive all wood structure 3 speed saw

Machinery Photo Index

Manufactured/Badged by:
Unknown Manufacturer
*

True Manufacturer:
Unknown Manufacturer, *

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Jig or Scroll Saw
Machine Size:
Submitted By:	Daniel H.

Machine Specifications
Description/Model:	Primitive all wood structure 3 speed saw
Date of Manufacturer:	Late 1800's early 1900's
Serial Number:
Last Updated	9/20/2015 8:37:16 PM

Comments:

This was found during an estate auction and there was no information about it's origin or history. Heavy, nearly all wood construction. It appears that the action was driven by cams on the ends of the upper and lower pulley wheels with a return spring above the blade to bring it back up to the top of the stroke. My guess is that it is treadle driven but the treadle peddle and the connecting rods are missing so the exact action is still in question. The only identifying markings are "H. Dickerman Beloit, WI" Even Google is ignorant on this one!

Photo 1:

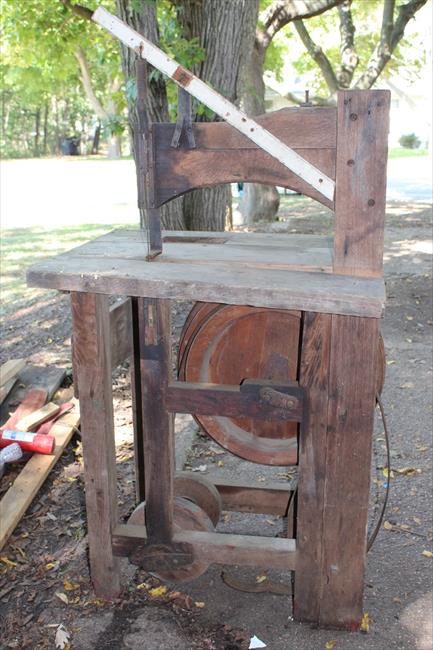

Comments: Front of unit
Source: myself

Direct Link
IMG Code

Photo 2:

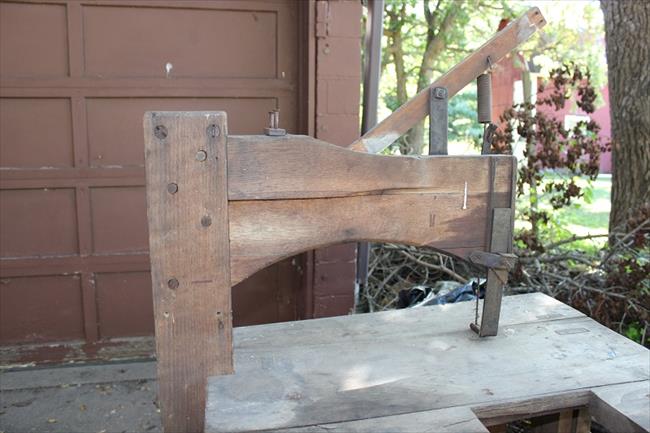

Comments: Right side w/stencil
Source: myself

Direct Link
IMG Code

Photo 3:

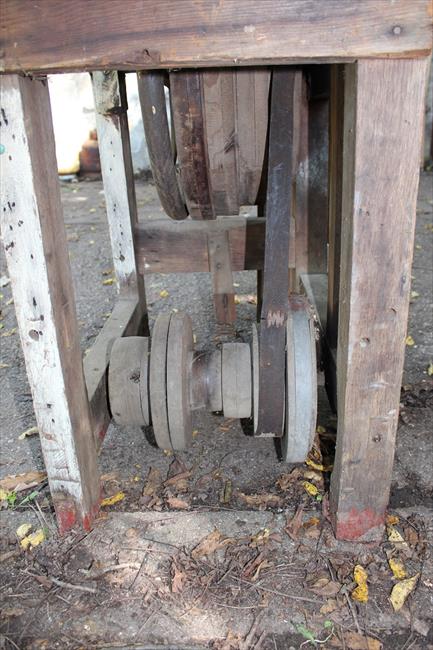

Comments: rear side showing heavy iron momentum ring.
Source: myself

Direct Link
IMG Code

Photo 4:

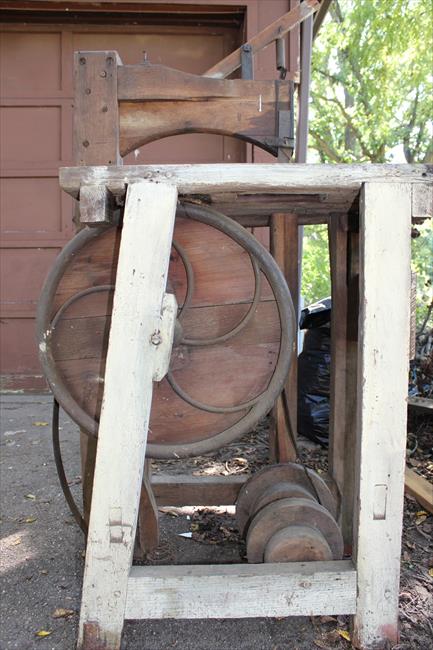

Comments: left side. 3 speed pullies
Source: myself

Direct Link
IMG Code

Photo 5:

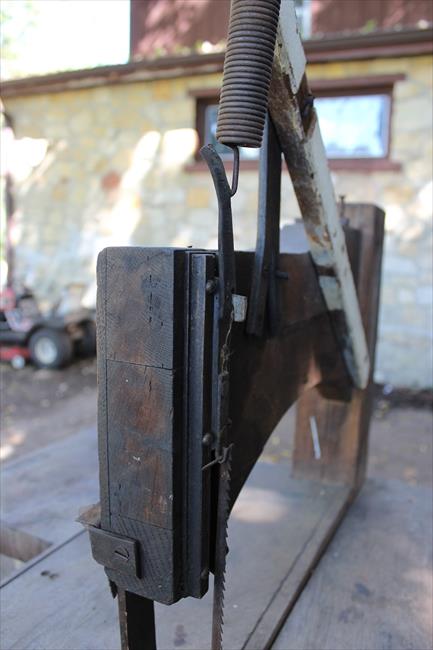

Comments: blade return spring, leather connector and guide
Source: myself

Direct Link
IMG Code

Photo 6:

Comments: Top arm assembly
Source: myself

Direct Link
IMG Code
