Photo Index - Sears | Craftsman - 551.????

Machinery Photo Index

Manufactured/Badged by:
Sears | Craftsman
Chicago, IL

True Manufacturer:
Leland Electric Co., Dayton, OH

Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Motor
Machine Size:	½ hp - 1725 rpm - 35 Frame Size
Submitted By:	Brian Kachadurian

Machine Specifications
Description/Model:	551.????
Date of Manufacturer:	1940s (est)
Serial Number:	10583_ML_4003
Last Updated	5/30/2017 4:04:58 PM

Comments:

>>MACHINE<<
Sears Craftsman ½ hp repulsion start - induction run electric motor, built by Leland Electric Co.
Oilite bearings, 1725 rpm, 8.2/4.1 amp, 115/230 volt, 60Hz, single 5/8" diameter x 1¾" shaft with 3/16" key.
Original black paint.
Missing original thrust bearing/plate at shaft end and wiring junction box.
Leland Electric patent numbers stamped on brush plate: 1464911, 1680795, 1698799, 1756692
Since the label does not have the usual Sears Craftsman data, I'm guessing the motor was built during the WWII timeframe, when consumer products were scarce.

>>HISTORY<<
October 2016:
Purchased from a fellow OWWMer in WI and another OWWMer Ruckered it to me at ArnFest 2016.
A previous owner rigged a pointed screw held by a jam nut to control shaft thrust.

April 2017:
Fabricated steel thrust bearing plate with hardened socket head adjustment screw, jam nut, and 3/16" diameter chrome steel ball located in the shaft center drill hole.
I only plan on using this motor in horizontal orientation only (possibly a 6" grinder or 12" band saw).
Motor runs smooth and quiet in both directions.

Photo 1:

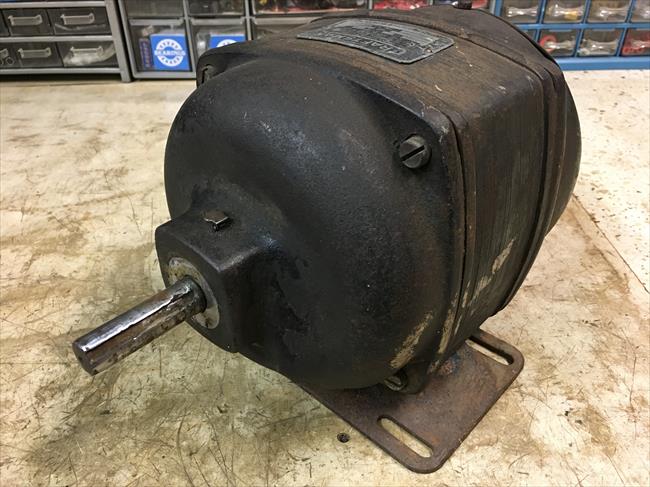

Comments: Shaft end
Source: iPhone 6S-existing light

Direct Link
IMG Code

Photo 2:

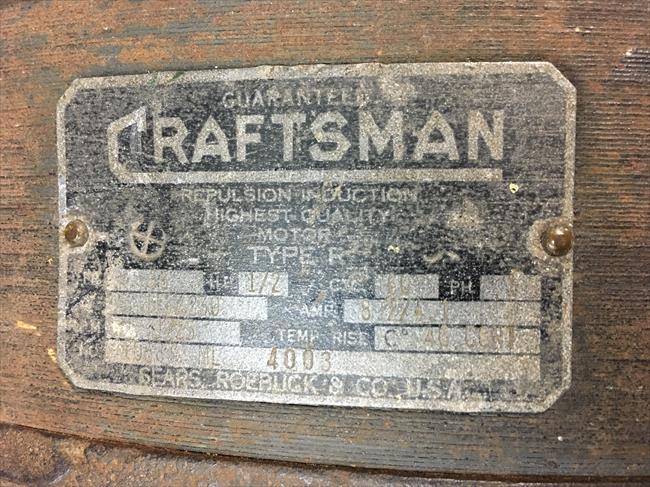

Comments: Tag
Source: iPhone 6S-existing light

Direct Link
IMG Code

Photo 3:

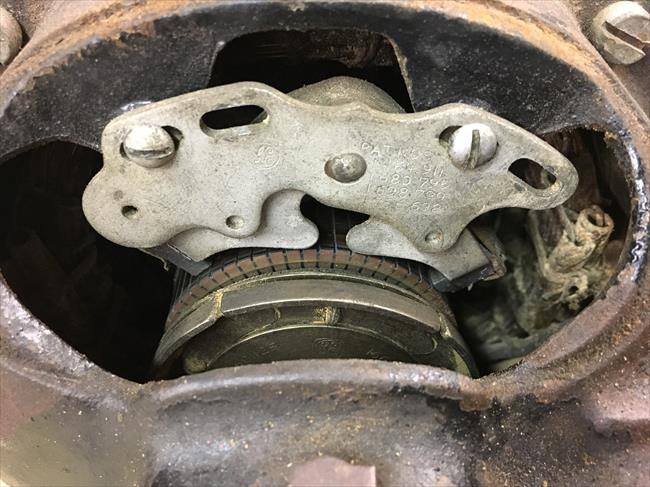

Comments: Brush plate: remove slotted head screws and shift brush plate to other pair of slots to reverse shaft direction
Source: iPhone 6S-existing light

Direct Link
IMG Code

Photo 4:

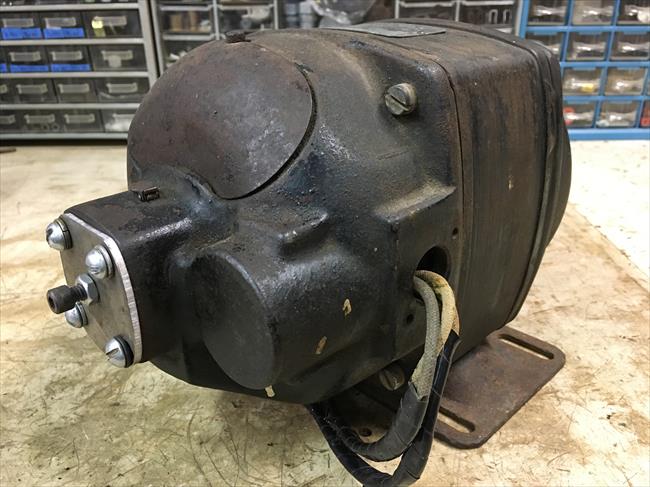

Comments: Rear end bell-fabricated thrust bearing/plate
Source: iPhone 6S-existing light

Direct Link
IMG Code

Photo 5:

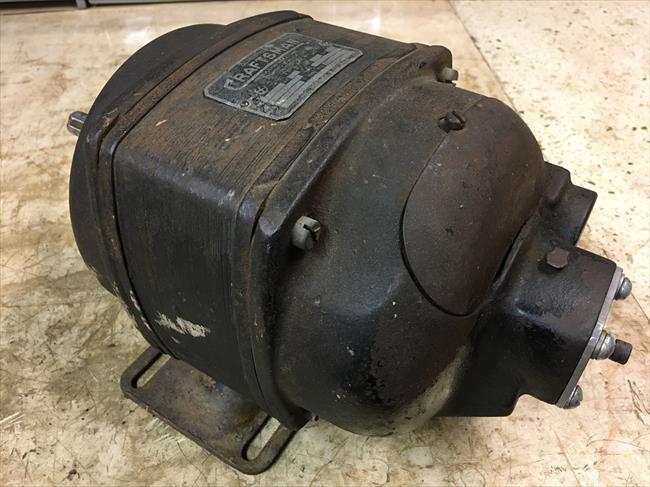

Comments: Rear end bell and brush access plate
