Photo Index - Delta Specialty/Delta Mfg. Co./Delta-Rockwell/Rockwell Intl. - No. 40-110 HOMECRAFT 16" SCROLL SAW

Machinery Photo Index

Manufactured/Badged by:
Delta Specialty/Delta Mfg. Co./Delta-Rockwell/Rockwell Intl.
Milwaukee, WI; Jackson, TN; Tupelo, MS

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Jig or Scroll Saw
Machine Size:	16"
Submitted By:	John Hirdt

Machine Specifications
Description/Model:	No. 40-110 HOMECRAFT 16" SCROLL SAW
Date of Manufacturer:	October 1948
Serial Number:	L-6210
Last Updated	9/10/2017 11:27:51 PM

Comments:

Machine:
Delta MFG Division
Rockwell Manufacturing Co.
Milwaukee-1-Wisconsin
Made in the United States of America
Serial no: L-6210

Motor:
Jack & Heintz Precision Industries Inc.
A.C. Motor
Volts: 115
Type: C1324-3
Amps: 5.5
RPM: 1725
CY: 60
PH: 1
HP: 1/3
Rise: 50 deg C.cont
FR: AA56
Ser Fact:
KVA/H.R.: P
Date: LC
Cleveland, OHIO, USA
Serial Number C-1324-3
Model Name JAHCO

History:
Machine was picked up in Long Island, New York from a gentleman selling his fathers entire shop. Shop included Drill Press, Lathe, Band Saw, Shaper, etc.

Restoration: Scroll saw was completely broken down and cleaned, painted and restored in August of 2017. Only piece that is missing is the Blade Guard, #8 Wire Bent(NSS-308). May have this piece in a box of spare parts that came with the saw, but have yet to find it. Rewired using a POWERTEC 71008 110/220V Single Phase on/off switch.

Photo 1:

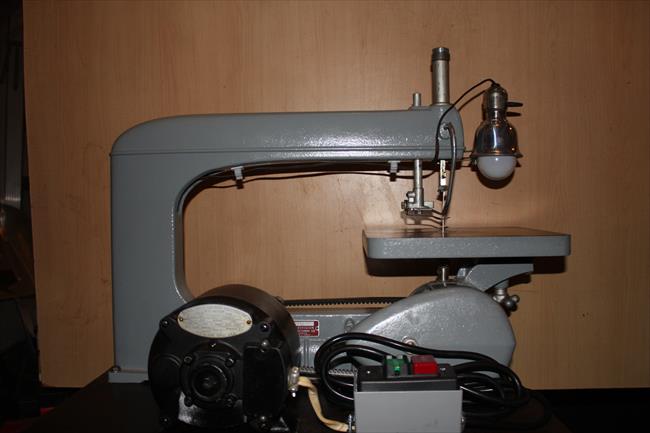

Comments: Side view of saw post restoration showing motor side.
Source: Hirdt, John

Direct Link
IMG Code

Photo 2:

Comments: Angled view of saw showing light, and Tilting Table, 11x11"
Source: Hirdt, John

Direct Link
IMG Code

Photo 3:

Comments: Upper Plunger assembly view.
Source: Hirdt, John

Direct Link
IMG Code

Photo 4:

Comments: Crank Case Cover, Pattern No DSS-4
Source: Hirdt, John

Direct Link
IMG Code

Photo 5:

Comments: Photo of Scroll Saw shortly after I purchased it.
Source: Hirdt, John

Direct Link
IMG Code

Photo 6:

Comments: Picture of Serial Number Plate, serial number L-6210
Source: Hirdt, John

Direct Link
IMG Code
