Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Drill Press
Machine Size:	22"
Submitted By:	Jacques Lagueux

Machine Specifications
Description/Model:	post drill no. 7
Date of Manufacturer:	1920's
Serial Number:
Last Updated	11/14/2018 3:26:49 PM

Comments:

I saw the add on Kijiji and went to see it, about 2-1/2 hours. It's a big one, I would say around 300 lbs. It's working well with the motor. It has two speeds, automatic ajustable feed or hand lever feed. Drill to the center of 22" circle. If anyone has photos or publication with this model (no. 7) I would appreciate. The drill didn't followed me home $$$, not for now.

Photo 1:

Comments: the flywheel as been replace by a pulley. We can see a bushing filling up the gap on the cross shaft
Source:

Direct Link
IMG Code

Photo 2:

Comments: the crank is missing and the capstan has one broken lever
Source:

Direct Link
IMG Code

Photo 3:

Comments: table raised and lowered by crank and screw
Source:

Direct Link
IMG Code

Photo 4:

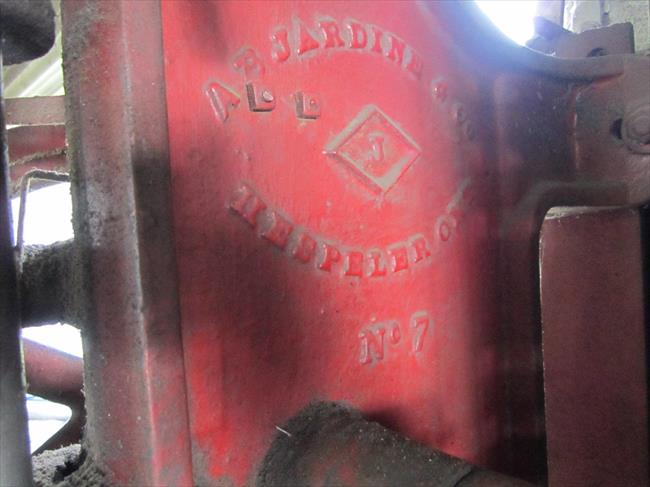

Comments: name and model
