Photo Index - South Bend Lathe Works - 9" Bench Lathe

Machinery Photo Index

Manufactured/Badged by:
South Bend Lathe Works
South Bend, IN

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	9x34
Submitted By:	Louis Schoolkate

Machine Specifications
Description/Model:	9" Bench Lathe
Date of Manufacturer:	1934
Serial Number:	53247 (View SN Registry Entry)
Last Updated	12/18/2025 8:49:47 PM

Comments:

This is the older heavier version of the 9" South Bend with wider bed, heavier headstock, double walled apron with tapered gibs on the slides. It was acquired from the grandson of the original purchaser who served in WWII and never came back. It was stored in a barn and in storage ever since and was covered in surface rust. The lathe was in multiple pieces but relatively easy to restore since all the parts were there and there was next to no wear on the ways.

Photo 1:

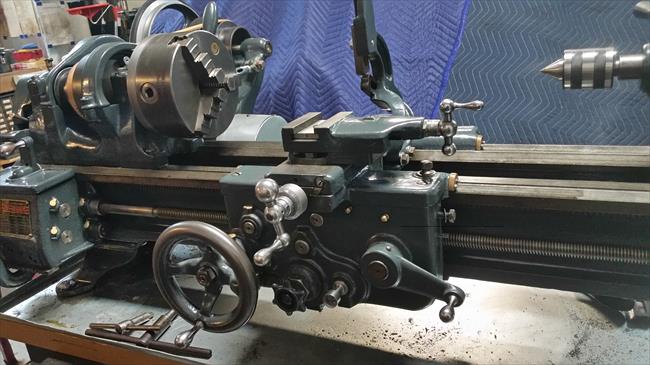

Comments: Carriage and headstock
Source: Self

Direct Link
IMG Code

Photo 2:

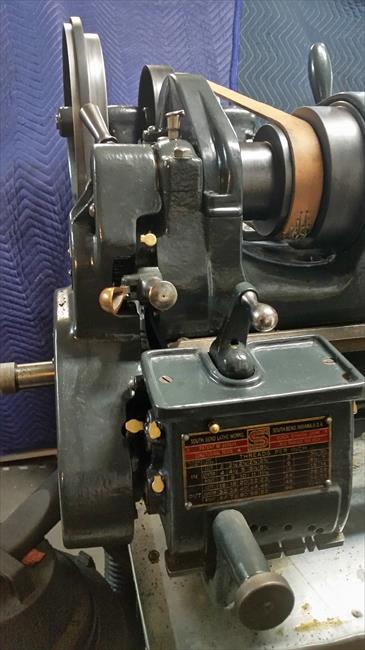

Comments: Headstock and restored quickchange
Source: self

Direct Link
IMG Code

Photo 3:

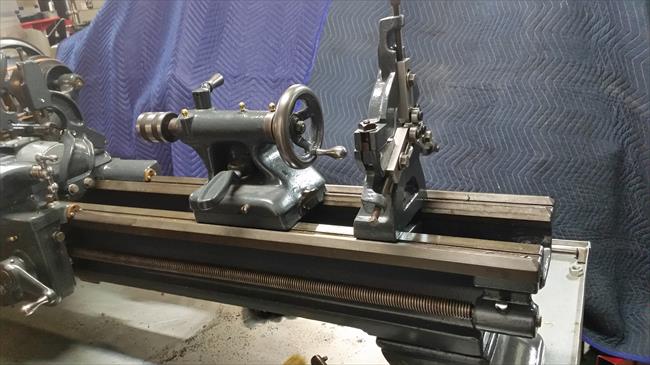

Comments: Tail end with Steady
Source: Self

Direct Link
IMG Code

Photo 4:

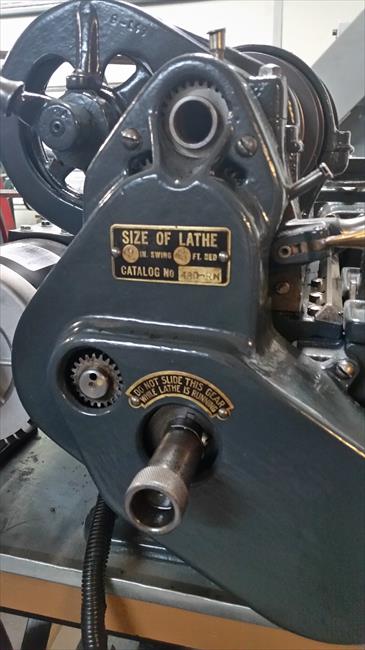

Comments: Model 480RN on end cover
