Photo Index - C. O. Porter Machinery Co. - Model 715A, 24" "finger feed" jointer

Machinery Photo Index

Manufactured/Badged by:
C. O. Porter Machinery Co.
Grand Rapids, MI

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Jointer
Machine Size:	24" cut, 4 knife round head
Submitted By:	Evan Smith

Machine Specifications
Description/Model:	Model 715A, 24" "finger feed" jointer
Date of Manufacturer:	? (Serial # 6228)
Serial Number:
Last Updated	6/18/2003 6:48:33 AM

Comments:

This machine came from the Olin Winchester firearms factory here in New Haven Ct. and has seen its share of walnut (gunstocks). The "finger feed" system is designed to minimize the deflection or deformation of stock inherant with roller type power feeders. It consists of many spring loaded fingers on a continuous overhead track or "chain." Both infeed and outfeed beds are corrugated. This machine was sold by The William H. Field Co. of Boston.
I can't comment just yet on it's performance but welcome others feedback with this machine, powerfeed system or in general.

10 hp 3450 rpm belt drive to the cutterhead with 20,500 CPM!
1/2 hp "US Varidrive" feed drive unit
3/4 hp motor for raising and lowering feed head

Photo 1:

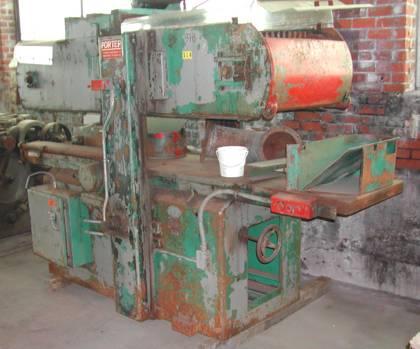

Comments: Infeed/side view
Source: Me

Direct Link
IMG Code

Photo 2:

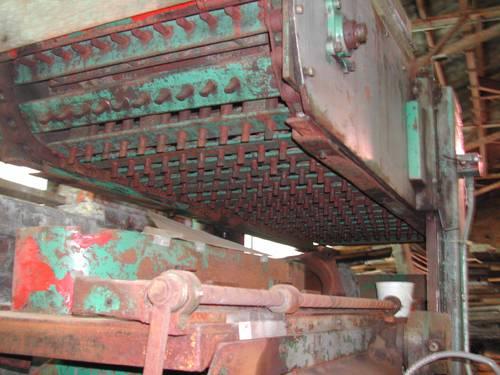

Comments: Spring loaded feed "fingers"
Source: Me

Direct Link
IMG Code

Photo 3:

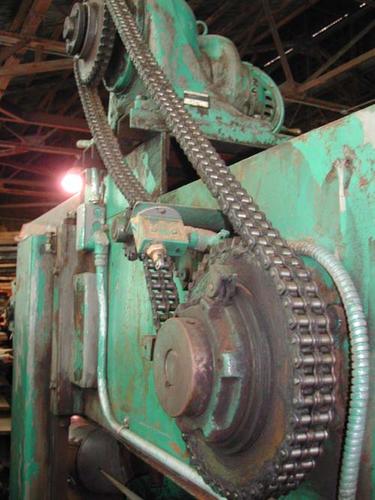

Comments: 1/2 hp "US Varidrive" feed drive
