Photo Index - Sears | Craftsman - 103.0213 Tilt Table

Machinery Photo Index

Manufactured/Badged by:
Sears | Craftsman
Chicago, IL

True Manufacturer:
King-Seeley Corp.-Central Specialty Division, Ann Arbor, MI; Ypsilanti, MI

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Table Saw
Machine Size:	8"
Submitted By:	Brian Kachadurian

Machine Specifications
Description/Model:	103.0213 Tilt Table
Date of Manufacturer:	1945 (est)
Serial Number:	none
Last Updated	5/29/2014 3:54:38 PM

Comments:

I picked up this saw at ArnFest08 by a fellow OWWMer.
Craftsman 8" ball bearing tilt table saw. Arbor-½", pulley-2" aluminum.
This saw has the improved cast iron fence with the round bar table edge guide.
The base, top and side castings are iron. The left and right cover plates are stamped steel.
This saw is interesting because it is originally painted the Post-WWII medium gray, but it has the earlier Craftsman logo tag.
I believe this saw was built shortly after WWII (probably 1945).

UPDATE-Sep 2013: sold this saw to a fellow OWWMer.

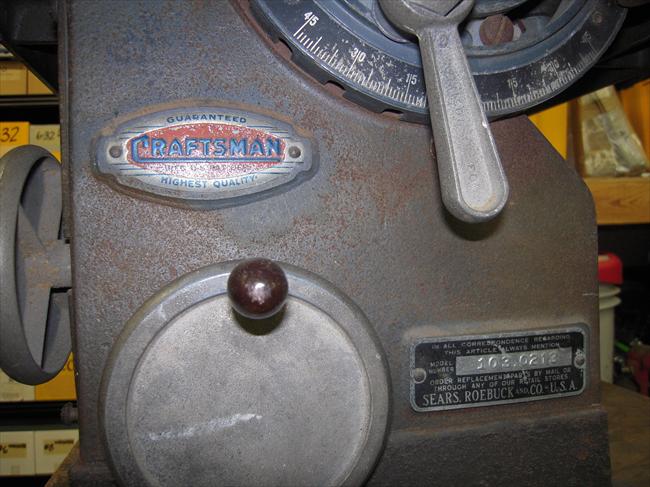

Photo 1:

Comments: Front view of base
Source: Nikon Coolpix w/flash in my basement shop

Direct Link
IMG Code

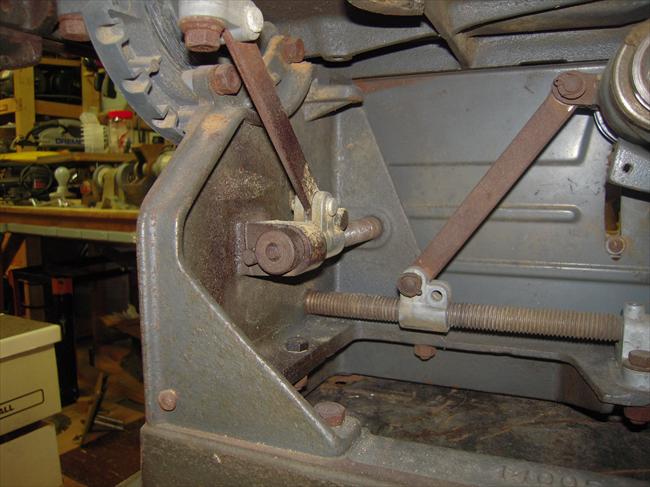

Photo 2:

Comments: Front trunnion with tilt screw. Blade elevation screw below.
Source: Nikon Coolpix w/flash in my basement shop

Direct Link
IMG Code

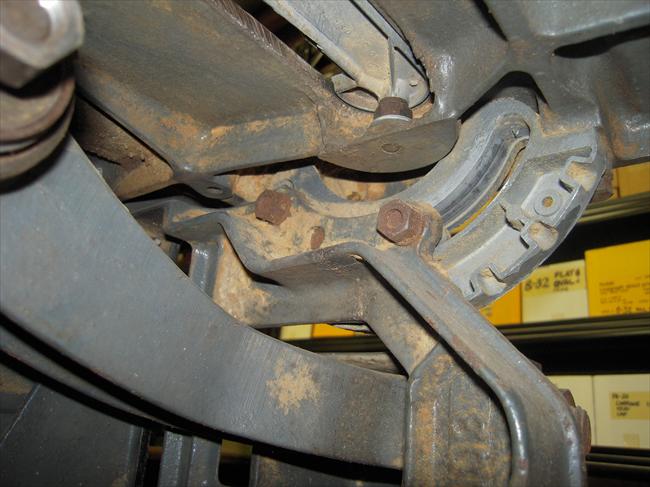

Photo 3:

Comments: Arbor arm and rear trunnion
Source: Nikon Coolpix w/flash in my basement shop

Direct Link
IMG Code

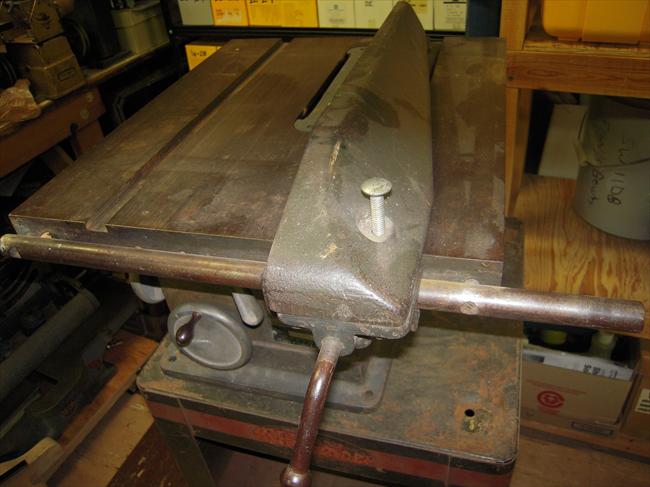

Photo 4:

Comments: Saw top and fence (top attachment bolt is not original)
Source: Nikon Coolpix w/flash in my basement shop

Direct Link
IMG Code

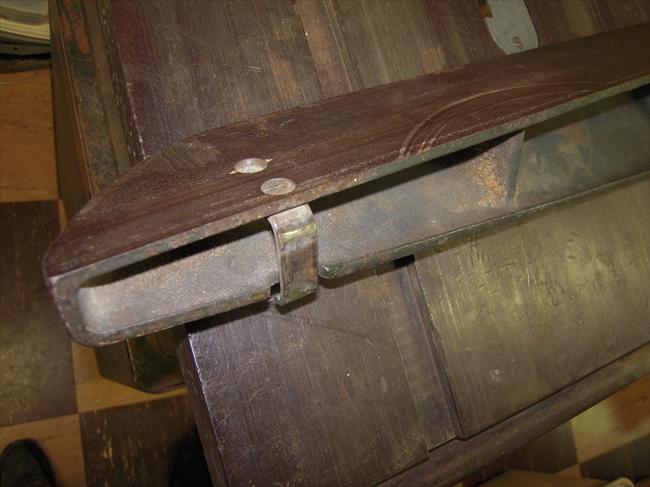

Photo 5:

Comments: Fence tip sliding foot
Source: Nikon Coolpix w/flash in my basement shop

Direct Link
IMG Code

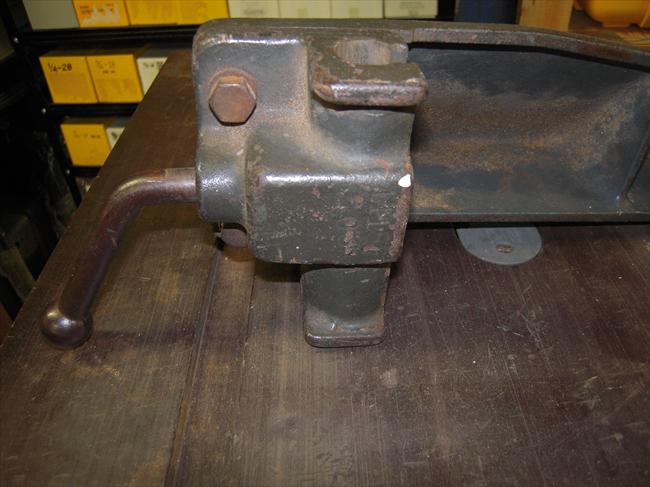

Photo 6:

Comments: Fence clamp end
Source: Nikon Coolpix w/flash in my basement shop

Direct Link
IMG Code
